EBMX X-9000 Power Kit

ENHANCE YOUR ELECTRIC RIDE

The X-9000 Power Kit is compatible with a range of Electric Motorcycles and a range of Motors.

At present we sell a plug and play kit for the following Electric Motorcycles:

• SurRon Light Bee
• SurRon Ultra Bee
• Talaria Sting

The Kit you purchase from us will contain in your X-9000 Box all parts needed for an OEM Replacement with the X-9000.

This Kit is a direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included). If you do not select an alternate option such as the SurRon Ultra Bee, please purchase here: https://ebmx.com.au/product/ebmx-x-9000-ultra-bee-power-kit/

The current list of Motors that the X-9000 is compatible with is below:

• OEM SurRon Light Bee
• OEM SurRon Ultra Bee
• OEM Talaria Sting
• KO RS SurRon
• KO F Spec SurRon
• KO RS Talaria
• KO F Spec Talaria
• QS138 – 90H water cooled

We are currently tuning the following Motors and will update the above list as each motor is fully tested and available to choose on the EBMX app.

• EBMX 35kW SurRon Ultra Bee (Pre-Order Date 1 July)
• EBMX 35kW SurRon Light Bee (Pre-Order Date 1 July)
• Apollo RFN
• ME1803 water cooled
• QS138 V3 gear reduction model
• QS Braaap Moto E Hub Motor

EBMX Xtreme Electric Mods combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller.
The X-9000 has been purpose built with dirt bike riders in mind.

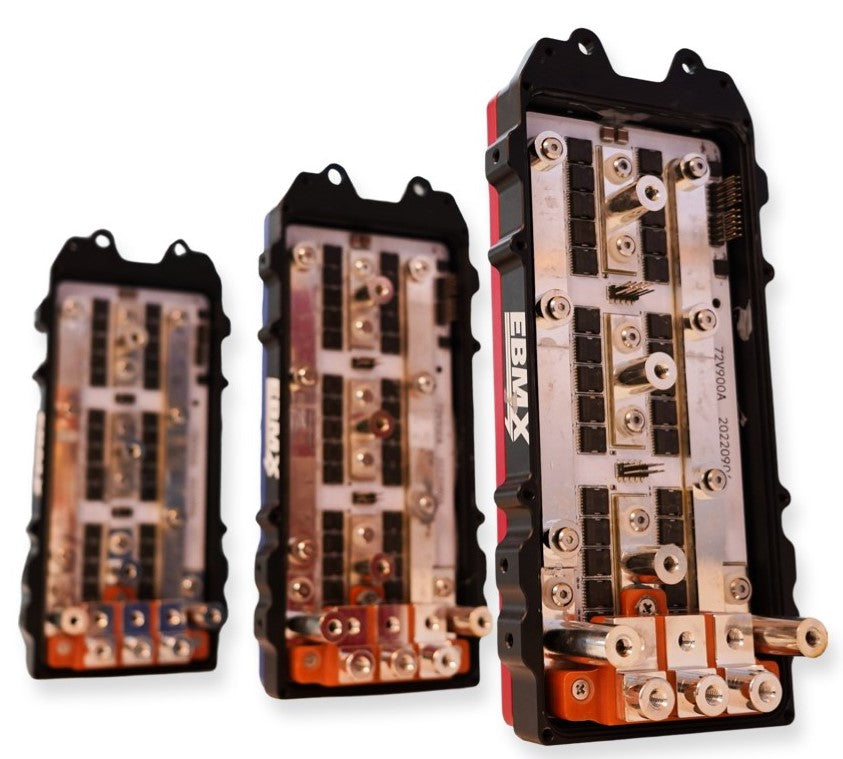

Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection moulded cover to the fully waterproof construction.

Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.

• Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
  • Multiple power modes and full adjustment in each mode
  • Adjustable speed limits for different ride modes
  • Customizable dashboard to set the display up how you want
• Built in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights and other 12v accessories as required and controllable through the app.

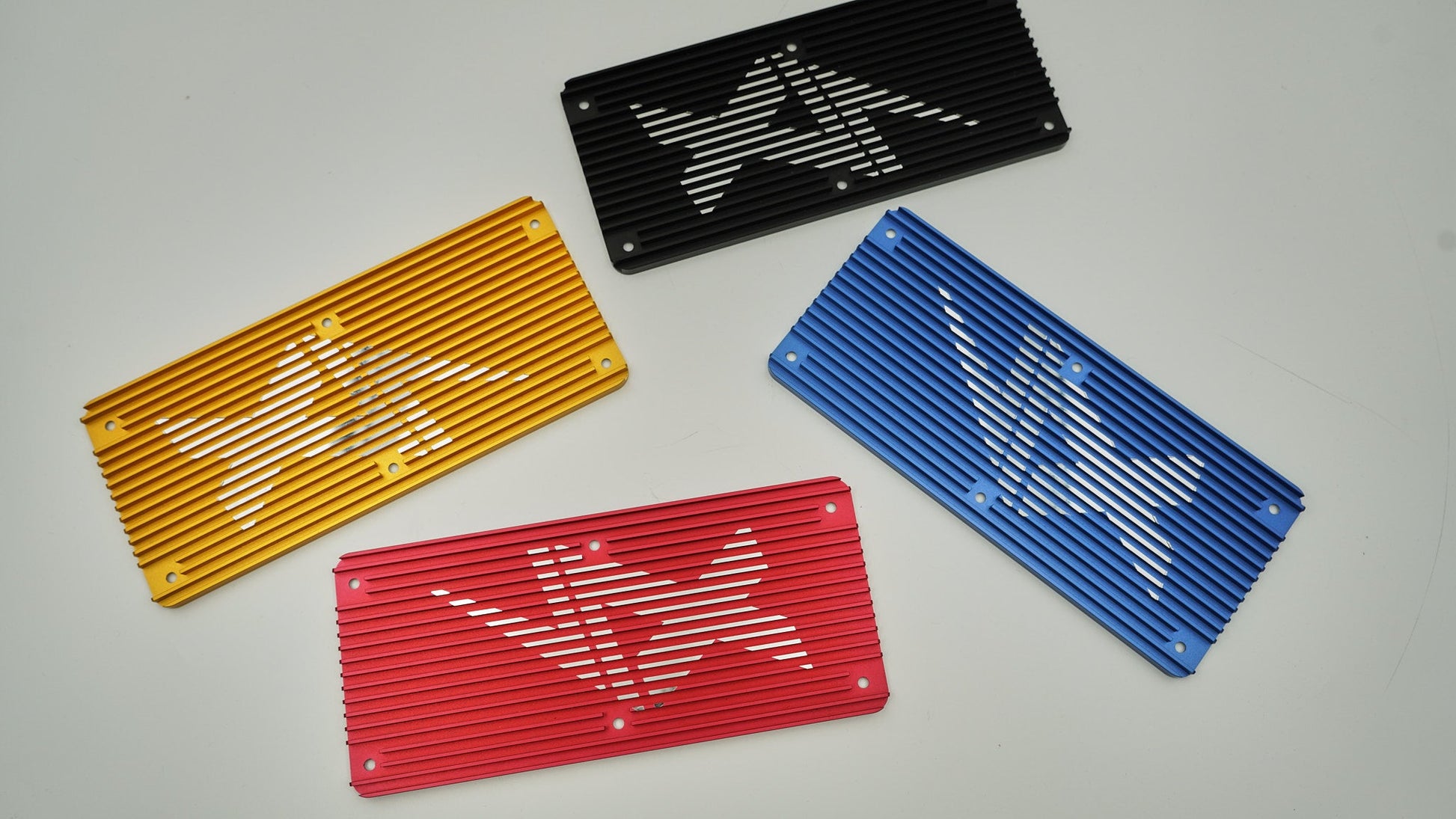

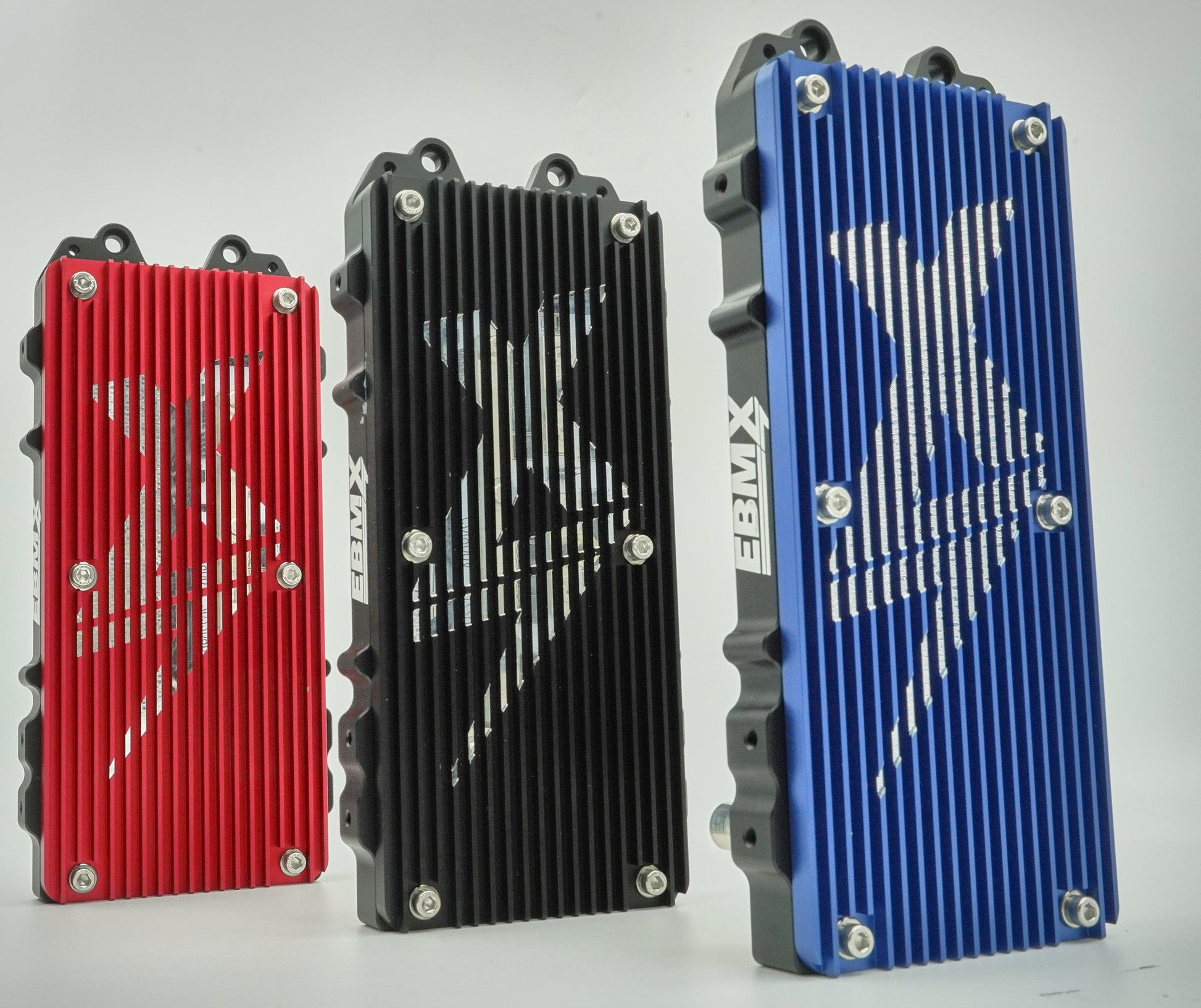

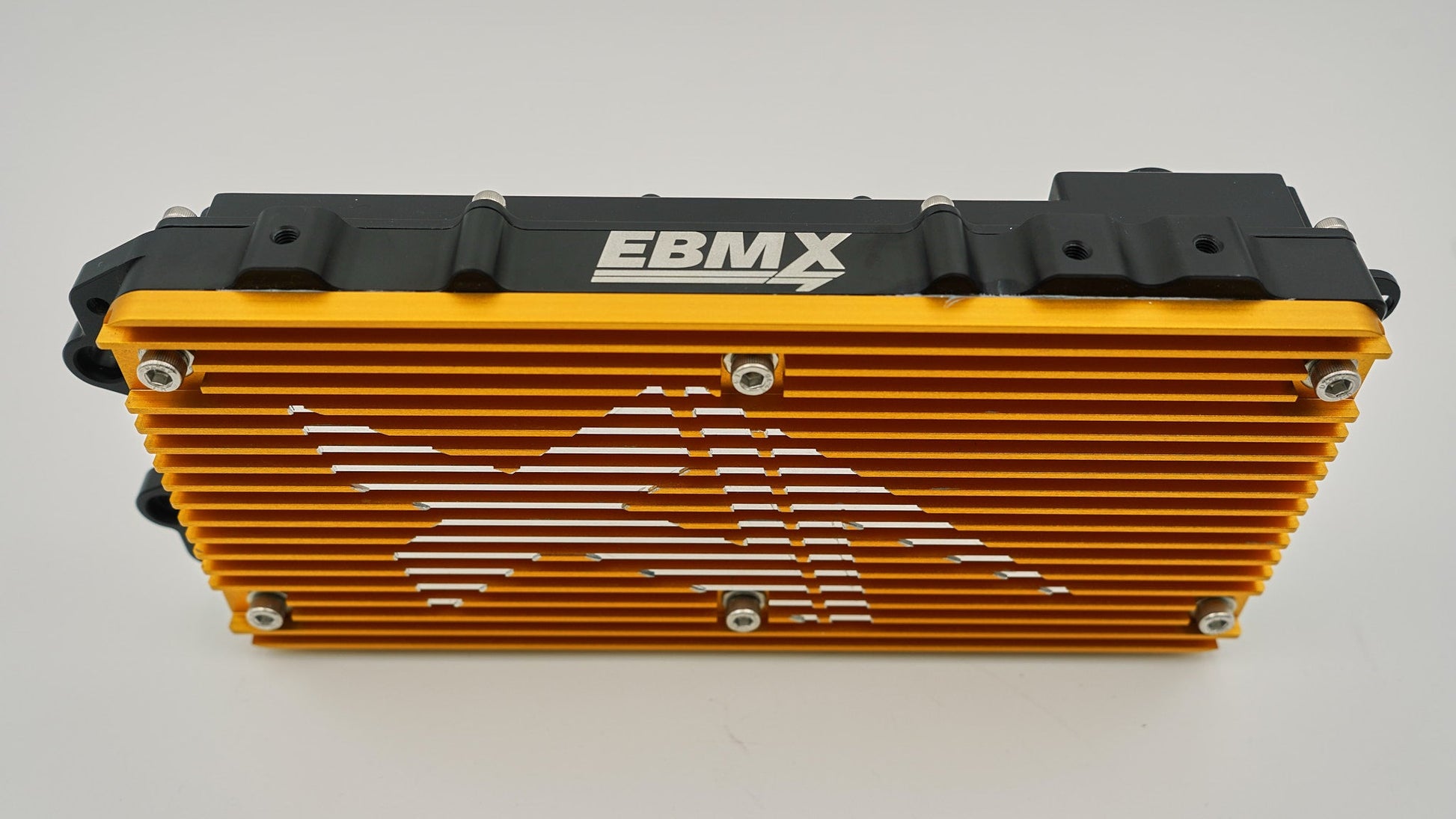

• Air-cooled heatsink as standard (comes in black, blue, red or gold). The option of a water-cooled heatsink for high powered builds is available.
• Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67 rated connectors for the harnesses.
• Direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
  • Integration with both SurRon hall-based motors and Talaria encoder motors

SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.

Can be setup with a smart phone for the display or to check info as desired

Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.

At present we sell a plug and play kit for the following Electric Motorcycles:

• SurRon Light Bee
• SurRon Ultra Bee
• Talaria Sting
